Hardware:
• USB 2.0 High-Speed (480MHz) Audio / MIDI system
• Leading edge performance technology based on an affordable, low current chipset
• 32-bit audio processing with 10 input and 10 output channels at 192kHz
• Optionally up to 19 input and 19 output channels at max. 96kHz
• Optionally up to 36 input and 36 output channels at max. 48kHz
• Samplerates: 44.1kHz to 768kHz, optionally DSD support
• USB2.0 bus- or self-powered power supply mode
• Sensationally low jitter using an on-chip audio PLL
• No samplerate conversion or clock recovery for true 1:1 audio
• Second USB port with second chip for mobile phones or tablets (OTG):
• 48kHz asynchronous samplerate conversion for mobile phones, 1:1 mode for iOS

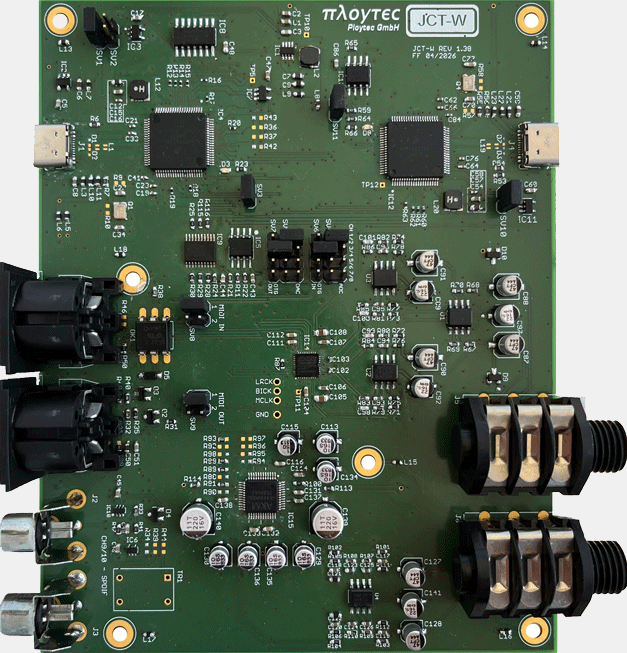

• Assignable stereo (1/4” TRS) line input and headphone output on the eval board
• Up to four MIDI input and output ports (fast USB2.0 I/O bulk transfer)
• SPDIF® or AES/EBU on chip, optionally ADAT via additional FPGA
• Based on the low cost 32-bit high performance NXP i.MX RT1010 microcontroller
Software:
• For Windows (10 and 11, 32-bit and 64-bit), Mac OS, iOS and Linux systems
• Multi-application mode - simultaneous ASIO and/or WDM playback
• Extremely low latency Windows ASIO driver (adjustable in multiple parameters)
• USB interrupt mode transactions on Windows for better performance
• Fully USB Audio Class 2.0 compliant (isoc asynchronous mode)
• Software installer and advanced ASIO control panel for Windows
ASIO is a trademark and software of Steinberg Media Technologies GmbH.
Firmware:
• Firmware updating while audio active via USB for programming future updates
• Audiomixer in firmware (low latency monitoring)
• USB tripple buffer capture and playback for lowest technically achievable latency
• Long term design experience with millions of USB Audio units licensed worldwide
